Home Network Setup – PhoneLine Network (HomePNA)

An excerpt from the HomePNA Alliance site (www.homepna.org) gives an excellent description of what a PhoneLine HPNA network is:

“The HomePNA™ Alliance develops triple-play home networking solutions for distributing entertainment data over both existing coax cable and phone lines… By providing data rates up to 320 Mbps with guaranteed Quality of Service (QoS), HomePNA technology enables service providers to meet – and drive – the growing demand for new multimedia services such as IPTV and VoIP to the home. HomePNA technology also provides consumers with the many benefits of “no-new-wires” home networking. “

The strong point of PhoneLine (or HomePNA) networks is that you can use the existing telephone or coax wires to network your home PCs or other equipment. As with other home network technologies (Ethernet, PoweLine, WiFi etc), you still need a compatible Network Adapter for each device to be installed. Then, all you need to do is connect a normal telephone wire (or coax cable) from each networked device to a wall telephone jack (or coax plug). The current version of Home PNA is 3.1. This supports data speeds up to 320 Mbps, which is a considerable boost from the older version 3.0 (128 Mbps) and from version 2.0 (10 Mbps).

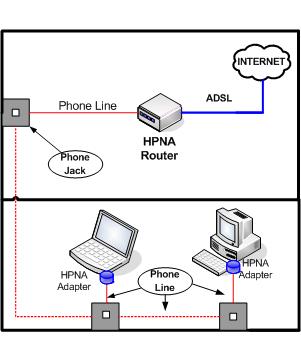

The diagram below shows a simple PhoneLine home network.

HomePNA HPNA phoneline network

As shown on the diagram above, you need a HomePNA adapter (either internal or external) for each PC/Laptop to be connected on the Phone Line infrastructure of your home.

Equipment Checklist

  • HPNA adapter: You can use either PCI or USB HomePNA adapters for connecting your computer to the PhoneLine network.
homepna pci card homepna usb adapter
  • HPNA Router: Here we have many choices. In our example network shown on the diagram above, the HPNA Router incorporates both PhoneLine and ADSL connectivity to bring internet access to the home network. There are products also that incorporate a mixture of access technologies on the same unit, such as WiFi, HPNA, and Ethernet. With such a product you can create a hybrid home network with various connectivity methods.

homepna ethernet bridge
